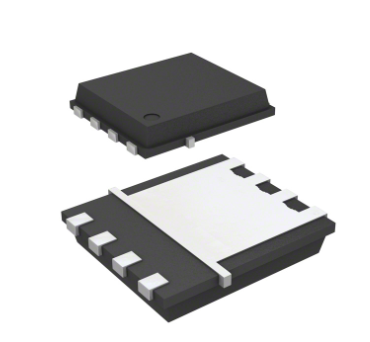

BSC016N04LS G

BSC016N04LS G

Model： BSC016N04LS G
Manufacturer： INFINEON
Price：
￥0.01
Quantity： 5000
Date Code： 20+
18811873340
产品详情
Product Attributes
TYPE
DESCRIPTION
SELECT
Category
Mfr
Texas Instruments
Series
NexFET™



Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
30 V
Current - Continuous Drain (Id) @ 25°C
14A (Ta), 73A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
3V, 8V
Rds On (Max) @ Id, Vgs
10.5mOhm @ 11A, 8V
Vgs(th) (Max) @ Id
1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
5.2 nC @ 4.5 V
Vgs (Max)
+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds
700 pF @ 15 V
FET Feature
-
Power Dissipation (Max)
3W (Ta)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-VSONP (5x6)
Package / Case
8-PowerTDFN
Base Product Number
CSD17307
